石英晶體振蕩器
- 編號：91177332
- 頻率：212.5MHZ
- 尺寸：5.0*3.2mm
- RoHS：
- RoHS2：
510ABA212M500BAGR,Skyworks游戲設備晶振,Si510差分有源晶振
510ABA212M500BAGR,Skyworks游戲設備晶振,Si510差分有源晶振，尺寸5032mm,頻率212.5MHZ，輸出邏輯LVPECL，電壓3.3V，頻率穩定性25ppm，思佳訊有源振蕩器，Skyworks差分晶振,LVPECL輸出晶振，LVPECL差分振蕩器，5032mm...
510ABA212M500BAGR,Skyworks游戲設備晶振,Si510差分有源晶振，尺寸5032mm,頻率212.5MHZ，輸出邏輯LVPECL，電壓3.3V，頻率穩定性25ppm，思佳訊有源振蕩器，Skyworks差分晶振,LVPECL輸出晶振，LVPECL差分振蕩器，5032mm差分振蕩器，差分有源晶體振蕩器，六腳差分晶振，貼片差分晶振，高頻差分晶振，石英差分晶振，高質量差分晶振，高性能差分晶振，低電壓差分晶振，低功耗差分晶振，低抖動差分晶振，低相位差分晶振，低電源電壓差分晶振，低損耗差分晶振，無線網絡差分晶振，光纖通道差分晶振，醫療產品差分晶振，智能家居專用差分晶振，數字視頻差分晶振，游戲設備差分晶振，測試測量差分晶振，交換機差分晶振，無線路由器差分晶振，智能音響差分晶振，具有高質量高性能的特點.SMD晶振產品常常用于無線網絡，光纖通道，醫療產品，智能家居，數字視頻，游戲設備，測試測量，交換機，無線路由器，智能音響等領域。510ABA212M500BAGR,Skyworks游戲設備晶振,Si510差分有源晶振.
510ABA212M500BAGR,Skyworks游戲設備晶振,Si510差分有源晶振 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||||
| Supply Voltage | V DD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | ||||||||||||||||||||
| Supply Current | IDD |
CMOS, 100 MHz, single-ended |
— | 21 | 26 | mA | ||||||||||||||||||
|
LVDS (output enabled) |
— | 19 | 23 | mA | ||||||||||||||||||||
|
LVPECL (output enabled) |
— | 39 | 43 | mA | ||||||||||||||||||||
|
HCSL (output enabled) |
— | 41 | 44 | mA | ||||||||||||||||||||
|
Tristate (output disabled) |
— | — | 18 | mA | ||||||||||||||||||||
| OE "1" Setting | VIH | See Note | 0.80 x V DD | — | — | V | ||||||||||||||||||
| OE "0" Setting | VIL | See Note | — | — | 0.20 x V DD | V | ||||||||||||||||||
|
OE Internal Pull-Up/Pull- Down Resistor* |
RI | — | 45 | — | kΩ | |||||||||||||||||||
| Operating Temperature | TA | –40 | — | 85 | oC | |||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||||
| Nominal Frequency | FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz | ||||||||||||||||||
| FO | LVDS/LVPECL/HCSL | 212.5 | MHz | |||||||||||||||||||||
| Total Stability* | Frequency Stability Grade C | –30 | — | +30 | ppm | |||||||||||||||||||
| Frequency Stability Grade B | –50 | — | +50 | ppm | ||||||||||||||||||||
| Frequency Stability Grade A | –100 | — | +100 | ppm | ||||||||||||||||||||
| Temperature Stability | Frequency Stability Grade C | –20 | — | +20 | ppm | |||||||||||||||||||
| Frequency Stability Grade B | –25 | — | +25 | ppm | ||||||||||||||||||||
| Frequency Stability Grade A | –50 | — | +50 | ppm | ||||||||||||||||||||
| Startup Time | TSU |
Minimum V DD until output frequency (FO) within specification |
— | — | 10 | ms | ||||||||||||||||||
| Disable Time | TD | FO> 10 MHz | — | — | 5 | µs | ||||||||||||||||||
| FO< 10 MHz | — | — | 40 | µs | ||||||||||||||||||||
| Enable Time | TE | FO> 10 MHz | — | — | 20 | µs | ||||||||||||||||||
| FO< 10 MHz | — | — | 60 | µs | ||||||||||||||||||||
510ABA212M500BAGR,Skyworks游戲設備晶振,Si510差分有源晶振
有源晶振產品特性：
支持來自的任何頻率100kHz至250MHz
低抖動操作
2-4周交付周期
總體穩定性包括10年變老
綜合生產試驗覆蓋范圍包括晶體ESR和DLD
用于電源的片上LDO調節器電源噪聲濾波
3.3、2.5或1.8 V操作
差分（LVPECL、LVDS、HCSL）或CMOS輸出選項
可選集成1:2 CMOS扇出緩存
OE和接通電源

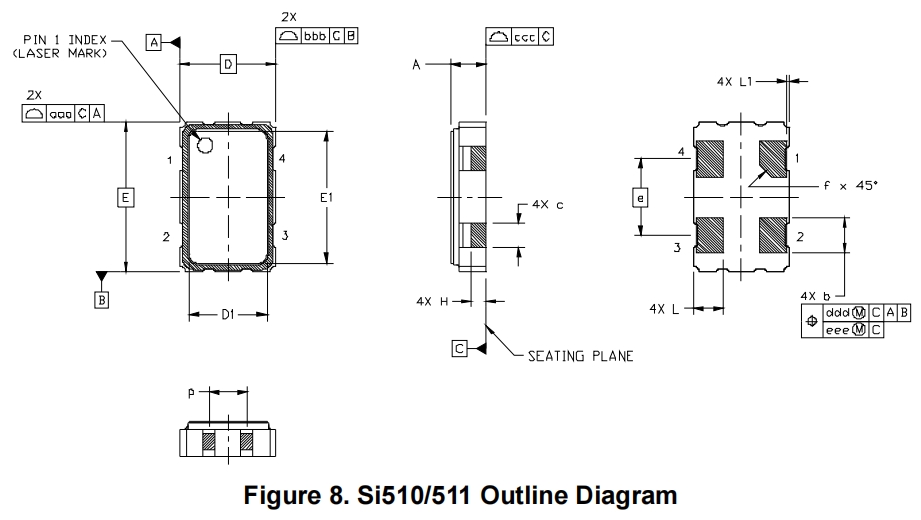

行業標準5 x 7、3.2 x 5，和2.5 x 3.2毫米封裝
無鉛，符合RoHS
–40至85℃操作
低抖動操作
2-4周交付周期
總體穩定性包括10年變老
綜合生產試驗覆蓋范圍包括晶體ESR和DLD
用于電源的片上LDO調節器電源噪聲濾波
3.3、2.5或1.8 V操作
差分（LVPECL、LVDS、HCSL）或CMOS輸出選項
可選集成1:2 CMOS扇出緩存
OE和接通電源
行業標準5 x 7、3.2 x 5，和2.5 x 3.2毫米封裝
無鉛，符合RoHS
–40至85℃操作
| Mfr Part # | Mfr | Description | Series | Frequency | Output | Voltage - Supply |
| 510FBA100M000AAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si510 | 100 MHz | LVDS | 2.5V |
| 510FBA125M000AAGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si510 | 125 MHz | LVDS | 2.5V |
| 510ABA106M250AAGR | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVPECL | Si510 | 106.25 MHz | LVPECL | 3.3V |
| 510BBA106M250AAGR | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si510 | 106.25 MHz | LVDS | 3.3V |
| 510FBA106M250AAGR | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si510 | 106.25 MHz | LVDS | 2.5V |
| 510ABA000149AAGR | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVPECL | Si510 | 74.175824 MHz | LVPECL | 3.3V |
| 510ABA74M2500AAGR | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVPECL | Si510 | 74.25 MHz | LVPECL | 3.3V |
| 510BBA000149AAGR | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVDS | Si510 | 74.175824 MHz | LVDS | 3.3V |
| 510BBA74M2500AAGR | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVDS SMD | Si510 | 74.25 MHz | LVDS | 3.3V |
| 510FBA000149AAGR | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVDS | Si510 | 74.175824 MHz | LVDS | 2.5V |
| 510FBA74M2500AAGR | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVDS SMD | Si510 | 74.25 MHz | LVDS | 2.5V |
| 510BBB200M000BAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si510 | 200 MHz | LVDS | 3.3V |
| 510JBA200M000BAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si510 | 200 MHz | LVDS | 1.8V |
| 510JAA120M000BAG | Skyworks有源晶振 | XTAL OSC XO 120.0000MHZ LVDS SMD | Si510 | 120 MHz | LVDS | 1.8V |
| 510BCA004638BAGR | Skyworks有源晶振 | XTAL OSC XO 638.0000KHZ LVDS SMD | Si510 | 638 kHz | LVDS | 3.3V |
| 510BCA142M800AAGR | Skyworks有源晶振 | XTAL OSC XO 142.8000MHZ LVDS SMD | Si510 | 142.8 MHz | LVDS | 3.3V |
| 510FCA148M500AAGR | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si510 | 148.5 MHz | LVDS | 2.5V |
| 510ABA100M000BAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVPECL | Si510 | 100 MHz | LVPECL | 3.3V |
| 510ABA125M000BAGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVPECL | Si510 | 125 MHz | LVPECL | 3.3V |
| 510BBA100M000BAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si510 | 100 MHz | LVDS | 3.3V |
| 510BBA125M000BAGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si510 | 125 MHz | LVDS | 3.3V |
| 510FBA100M000BAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si510 | 100 MHz | LVDS | 2.5V |
| 510FBA125M000BAGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si510 | 125 MHz | LVDS | 2.5V |
| 510ABA106M250BAGR | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVPECL | Si510 | 106.25 MHz | LVPECL | 3.3V |
| 510ABA000149BAGR | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVPECL | Si510 | 74.175824 MHz | LVPECL | 3.3V |
| 510ABA74M2500BAGR | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVPECL | Si510 | 74.25 MHz | LVPECL | 3.3V |
| 510BBA000149BAGR | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVDS | Si510 | 74.175824 MHz | LVDS | 3.3V |
| 510BBA74M2500BAGR | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVDS SMD | Si510 | 74.25 MHz | LVDS | 3.3V |
| 510FBA000149BAGR | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVDS | Si510 | 74.175824 MHz | LVDS | 2.5V |
| 510FBA74M2500BAGR | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVDS SMD | Si510 | 74.25 MHz | LVDS | 2.5V |
| 510AAA124M512AAG | Skyworks有源晶振 | XTAL OSC XO 124.5120MHZ LVPECL | Si510 | 124.512 MHz | LVPECL | 3.3V |
| 510BAA110M000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 110 MHz | LVDS | 3.3V |
| 510BAA100M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | LVDS | 3.3V |
| 510JAA25M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 25 MHz | LVDS | 1.8V |
| 510AAA004701CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 123.345339 MHz | LVPECL | 3.3V |
| 510AAAM460800CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 460.8 kHz | LVPECL | 3.3V |
| 510AAA004697CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 123.456789 MHz | LVPECL | 3.3V |
| 510AAAM468000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 468 kHz | LVPECL | 3.3V |
| 510AAA25M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 25 MHz | LVPECL | 3.3V |
| 510JAA24M0000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 24 MHz | LVDS | 1.8V |
| 510ABA200M000AAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVPECL | Si510 | 200 MHz | LVPECL | 3.3V |
| 510BBA200M000AAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si510 | 200 MHz | LVDS | 3.3V |
| 510ABA212M500AAGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVPECL | Si510 | 212.5 MHz | LVPECL | 3.3V |
| 510ABA200M000BAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVPECL | Si510 | 200 MHz | LVPECL | 3.3V |
| 510BBA200M000BAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si510 | 200 MHz | LVDS | 3.3V |
| 510ABA212M500BAGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVPECL | Si510 | 212.5 MHz | LVPECL | 3.3V |
| 510BBA212M500BAGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si510 | 212.5 MHz | LVDS | 3.3V |
| 510FBA212M500BAGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si510 | 212.5 MHz | LVDS | 2.5V |
| 510BBA000149BAG | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVDS | Si510 | 74.175824 MHz | LVDS | 3.3V |
| 510FBA000149BAG | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVDS | Si510 | 74.175824 MHz | LVDS | 2.5V |
| 510ABA000292AAG | Skyworks有源晶振 | XTAL OSC XO 292.0000KHZ LVPECL | Si510 | 292 kHz | LVPECL | 3.3V |
| 510ABB000292AAG | Skyworks有源晶振 | XTAL OSC XO 292.0000KHZ LVPECL | Si510 | 292 kHz | LVPECL | 3.3V |
| 510ABB156M250AAG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVPECL | Si510 | 156.25 MHz | LVPECL | 3.3V |
| 510BBA135M000AAG | Skyworks有源晶振 | XTAL OSC XO 135.0000MHZ LVDS SMD | Si510 | 135 MHz | LVDS | 3.3V |
| 510BBB000292AAG | Skyworks有源晶振 | XTAL OSC XO 292.0000KHZ LVDS SMD | Si510 | 292 kHz | LVDS | 3.3V |
| 510BBB161M133AAG | Skyworks有源晶振 | XTAL OSC XO 161.1330MHZ LVDS SMD | Si510 | 161.133 MHz | LVDS | 3.3V |
| 510ABA115M000AAG | Skyworks有源晶振 | XTAL OSC XO 115.0000MHZ LVPECL | Si510 | 115 MHz | LVPECL | 3.3V |
| 510ABA24M5760AAG | Skyworks有源晶振 | XTAL OSC XO 24.5760MHZ LVPECL | Si510 | 24.576 MHz | LVPECL | 3.3V |
| 510ABB21M4000AAG | Skyworks有源晶振 | XTAL OSC XO 21.4000MHZ LVPECL | Si510 | 21.4 MHz | LVPECL | 3.3V |
| 510ABB92M4000BAGR | Skyworks有源晶振 | XTAL OSC XO 92.4000MHZ LVPECL | Si510 | 92.4 MHz | LVPECL | 3.3V |
| 510FBB92M4000BAGR | Skyworks有源晶振 | XTAL OSC XO 92.4000MHZ LVDS SMD | Si510 | 92.4 MHz | LVDS | 2.5V |
| 510BBA80M0000BAGR | Skyworks有源晶振 | XTAL OSC XO 80.0000MHZ LVDS SMD | Si510 | 80 MHz | LVDS | 3.3V |
| 510ABA33M3300CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 33.33 MHz | LVPECL | 3.3V |
| 510BBA50M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 50 MHz | LVDS | 3.3V |
| 510FBA100M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | LVDS | 2.5V |
| 510JBA100M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | LVDS | 1.8V |
| 510FBA25M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 25 MHz | LVDS | 2.5V |
| 510BBA100M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 100 MHz | LVDS | 3.3V |
| 510EBA125M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 125 MHz | LVPECL | 2.5V |
| 510FBA125M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 125 MHz | LVDS | 2.5V |
| 510JBA60M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 60 MHz | LVDS | 1.8V |
| 510ABA125M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 125 MHz | LVPECL | 3.3V |
| 510BBA110M000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 110 MHz | LVDS | 3.3V |
| 510FBA20M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 20 MHz | LVDS | 2.5V |
| 510ABA50M0000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 50 MHz | LVPECL | 3.3V |
| 510JBA50M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 50 MHz | LVDS | 1.8V |
| 510JBA125M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 125 MHz | LVDS | 1.8V |
| 510JBA26M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 26 MHz | LVDS | 1.8V |
| 510ACA106M250AAG | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVPECL | Si510 | 106.25 MHz | LVPECL | 3.3V |
| 510FCA40M0000AAG | Skyworks晶振 | XTAL OSC XO 40.0000MHZ LVDS SMD | Si510 | 40 MHz | LVDS | 2.5V |
| 510ABA125M000BAG | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVPECL | Si510 | 125 MHz | LVPECL | 3.3V |
| 510ABA000149BAG | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVPECL | Si510 | 74.175824 MHz | LVPECL | 3.3V |
| 510ABA74M2500BAG | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVPECL | Si510 | 74.25 MHz | LVPECL | 3.3V |
| 510ACA26M0000BAG | Skyworks有源晶振 | XTAL OSC XO 26.0000MHZ LVPECL | Si510 | 26 MHz | LVPECL | 3.3V |
| 510BAA000244BAG | Skyworks有源晶振 | XTAL OSC XO 244.0000KHZ LVDS SMD | Si510 | 244 kHz | LVDS | 3.3V |
| 510BCA000383BAG | Skyworks有源晶振 | XTAL OSC XO 383.0000KHZ LVDS SMD | Si510 | 383 kHz | LVDS | 3.3V |
| 510ECA50M0000BAG | Skyworks有源晶振 | XTAL OSC XO 50.0000MHZ LVPECL | Si510 | 50 MHz | LVPECL | 2.5V |
| 510FCA32M0000BAG | Skyworks有源晶振 | XTAL OSC XO 32.0000MHZ LVDS SMD | Si510 | 32 MHz | LVDS | 2.5V |
| 510ABA25M0000BAGR | Skyworks有源晶振 | XTAL OSC XO 25.0000MHZ LVPECL | Si510 | 25 MHz | LVPECL | 3.3V |
| 510ABB125M000BAGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVPECL | Si510 | 125 MHz | LVPECL | 3.3V |
| 510BBA108M000BAGR | Skyworks有源晶振 | XTAL OSC XO 108.0000MHZ LVDS SMD | Si510 | 108 MHz | LVDS | 3.3V |
| 510BBA10M0000BAGR | Skyworks有源晶振 | XTAL OSC XO 10.0000MHZ LVDS SMD | Si510 | 10 MHz | LVDS | 3.3V |
| 510BBA25M0000BAGR | Skyworks有源晶振 | XTAL OSC XO 25.0000MHZ LVDS SMD | Si510 | 25 MHz | LVDS | 3.3V |
| 510BBA27M0000BAGR | Skyworks有源晶振 | XTAL OSC XO 27.0000MHZ LVDS SMD | Si510 | 27 MHz | LVDS | 3.3V |
| 510BBA40M0000BAGR | Skyworks有源晶振 | XTAL OSC XO 40.0000MHZ LVDS SMD | Si510 | 40 MHz | LVDS | 3.3V |
| 510BBA50M0000BAGR | Skyworks有源晶振 | XTAL OSC XO 50.0000MHZ LVDS SMD | Si510 | 50 MHz | LVDS | 3.3V |
| 510BBB125M000BAGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si510 | 125 MHz | LVDS | 3.3V |
| 510BBB74M2500BAGR | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVDS SMD | Si510 | 74.25 MHz | LVDS | 3.3V |
| 510EBA100M000BAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVPECL | Si510 | 100 MHz | LVPECL | 2.5V |
| 510EBA125M000BAGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVPECL | Si510 | 125 MHz | LVPECL | 2.5V |
| 510EBA50M0000BAGR | Skyworks有源晶振 | XTAL OSC XO 50.0000MHZ LVPECL | Si510 | 50 MHz | LVPECL | 2.5V |
| 510FBA50M0000BAGR | Skyworks有源晶振 | XTAL OSC XO 50.0000MHZ LVDS SMD | Si510 | 50 MHz | LVDS | 2.5V |
| 510FBA62M5000BAGR | Skyworks有源晶振 | XTAL OSC XO 62.5000MHZ LVDS SMD | Si510 | 62.5 MHz | LVDS | 2.5V |
| 510FBA83M2500BAGR | Skyworks有源晶振 | XTAL OSC XO 83.2500MHZ LVDS SMD | Si510 | 83.25 MHz | LVDS | 2.5V |
| 510FBB62M5000BAGR | Skyworks有源晶振 | XTAL OSC XO 62.5000MHZ LVDS SMD | Si510 | 62.5 MHz | LVDS | 2.5V |
| 510JBA100M000BAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si510 | 100 MHz | LVDS | 1.8V |
| 510JBA122M880BAGR | Skyworks有源晶振 | XTAL OSC XO 122.8800MHZ LVDS SMD | Si510 | 122.88 MHz | LVDS | 1.8V |
| 510JBA125M000BAGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si510 | 125 MHz | LVDS | 1.8V |
| 510JBA20M0000BAGR | Skyworks有源晶振 | XTAL OSC XO 20.0000MHZ LVDS SMD | Si510 | 20 MHz | LVDS | 1.8V |
| 510JBA39M0625BAGR | Skyworks有源晶振 | XTAL OSC XO 39.0625MHZ LVDS SMD | Si510 | 39.0625 MHz | LVDS | 1.8V |
| 510JBA62M5000BAGR | Skyworks有源晶振 | XTAL OSC XO 62.5000MHZ LVDS SMD | Si510 | 62.5 MHz | LVDS | 1.8V |
| 510JBB78M1250BAGR | Skyworks有源晶振 | XTAL OSC XO 78.1250MHZ LVDS SMD | Si510 | 78.125 MHz | LVDS | 1.8V |
| 510FCA25M0000AAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 25 MHz | LVDS | 2.5V |
| 510BBB200M000BAG | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si510 | 200 MHz | LVDS | 3.3V |
深圳市康華爾電子有限公司SHENZHEN KONUAER ELECTRONICS CO.,LTD
電 話：0755-27838351
手 機：13823300879
Q Q：632862232
E-mail：konuaer@163.com
網 址：http://www.mxsir.cn
地 址：廣東深圳市寶安寶安大道東95號浙商銀行大廈1905
業務經理
