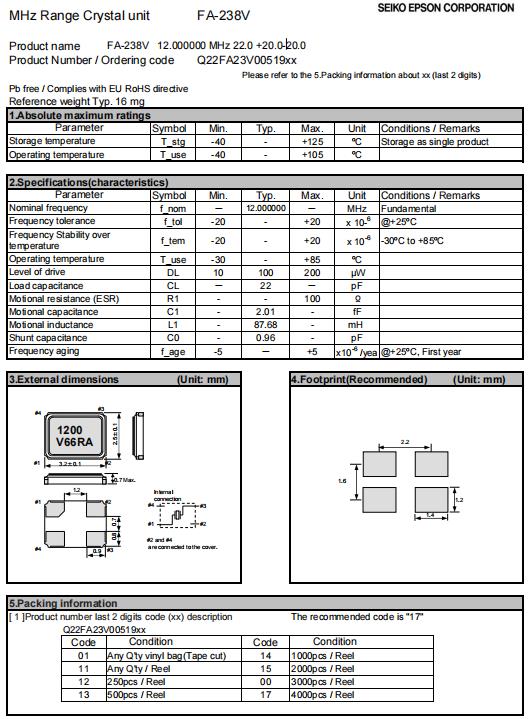

無人機專用的愛普生石英晶體諧振器Q22FA23V0051916，愛普生晶振公司的發展實在太過于輝煌，成就更為驚人，憑著自身的信念開發出了無源晶振，石英晶體諧振器，F(xiàn)A-238V晶振，編碼Q22FA23V0051916，編碼12.000000兆赫，尺寸(LxWxH)3.2 x 2.5 x 0.7 mm，客戶負載電容22pf，頻率公差+ / -20 ppm，F(xiàn)o / temp。特征公差+ / -20 ppm，溫度范圍-30至+85°C，具備高精度，低損耗，低抖動之特點，非常適合用于無人機，北斗模塊專用晶振等領域。

產品編碼	尺寸	型號	頻率	負載	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range	ESR [Max]
Q22FA23V0048616	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	10 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0049816	3.2 x 2.5 x 0.7mm	FA-238V	13.333000 MHz	12 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0050416	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	8 pF	+/-20 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0050516	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	8 pF	+/-20 ppm	+/-20 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0051316	3.2 x 2.5 x 0.7mm	FA-238V	15.980000 MHz	8 pF	+/-15 ppm	+/-15 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0051916	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	22 pF	+/-20 ppm	+/-20 ppm	-30 to +85 °C	≤ 100 Ω
Q22FA23V0052116	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	20 pF	+/-20 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0052716	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	9 pF	+/-20 ppm	+/-20 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0052916	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	12 pF	+/-20 ppm	+/-20 ppm	-40 to +85 °C	≤ 100 Ω
Q22FA23V0053316	3.2 x 2.5 x 0.7mm	FA-238V	15.000000 MHz	20 pF	+/-18 ppm	+/-22 ppm	-40 to +85 °C	≤ 80 Ω
Q22FA23V0053416	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	20 pF	+/-20 ppm	+/-30 ppm	-40 to +85 °C	≤ 100 Ω
Q22FA23V0053616	3.2 x 2.5 x 0.7mm	FA-238V	13.107200 MHz	12.5 pF	+/-10 ppm	+/-10 ppm	-20 to +60 °C	≤ 80 Ω
Q22FA23V0053916	3.2 x 2.5 x 0.7mm	FA-238V	12.800000 MHz	12 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0054816	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	20 pF	+/-25 ppm	+/-30 ppm	-40 to +85 °C	≤ 100 Ω
Q22FA23V0055316	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	12 pF	+/-20 ppm	+/-30 ppm	-40 to +85 °C	≤ 100 Ω
Q22FA23V0056416	3.2 x 2.5 x 0.7mm	FA-238V	14.318000 MHz	10 pF	+/-15 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0056516	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	10 pF	+/-15 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0056716	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	8 pF	+/-50 ppm	+/-30 ppm	-40 to +85 °C	≤ 100 Ω
Q22FA23V0057216	3.2 x 2.5 x 0.7mm	FA-238V	15.750000 MHz	10 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0057316	3.2 x 2.5 x 0.7mm	FA-238V	13.507600 MHz	18 pF	+/-15 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0057516	3.2 x 2.5 x 0.7mm	FA-238V	12.500000 MHz	7 pF	+/-15 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0057616	3.2 x 2.5 x 0.7mm	FA-238V	13.521270 MHz	10 pF	+/-20 ppm	+/-22 ppm	-40 to +85 °C	≤ 80 Ω
Q22FA23V0057716	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	12 pF	+/-20 ppm	+/-23 ppm	-40 to +85 °C	≤ 100 Ω
Q22FA23V0057816	3.2 x 2.5 x 0.7mm	FA-238V	13.824000 MHz	18 pF	+/-10 ppm	+/-10 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0058216	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	16 pF	+/-20 ppm	+/-30 ppm	-40 to +85 °C	≤ 100 Ω
Q22FA23V0058316	3.2 x 2.5 x 0.7mm	FA-238V	13.824000 MHz	9 pF	+/-10 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0058416	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	15 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0058516	3.2 x 2.5 x 0.7mm	FA-238V	13.824000 MHz	15 pF	+/-10 ppm	+/-16 ppm	-30 to +85 °C	≤ 80 Ω
Q22FA23V0058616	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	15 pF	+/-20 ppm	+/-20 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0058916	3.2 x 2.5 x 0.7mm	FA-238V	15.974400 MHz	7 pF	+/-50 ppm	+/-50 ppm	-30 to +85 °C	≤ 80 Ω

無人機專用的愛普生石英晶體諧振器Q22FA23V0051916，愛普生公司擁有了無限的可能性，將為這個社會創造更多優質的貼片石英晶振產品，這是一家1942年成立之初,便將綠色創新精神融入自身基因,堅信技術創新?lián)碛锌梢愿淖兪澜绲木薮鬂撃?并在追求商業與自然和諧發展的道路上不斷探索。

超小型,薄型,質地輕的表面貼片音叉型進口晶振,手機晶體,產品體積小,特別適用于各種小巧的便攜式消費電子數碼產品,在移動通信領域得到了廣泛的應用,晶振產品本身可發揮優良的電氣特性,滿足無鉛焊接的高溫回流溫度曲線要求.
