常用編碼X1G006001007914是一款高精密的5G無線模塊溫補晶振，EPSON愛普生公司之所以能夠快速占領市場，并成為目前全球最大的有源晶振供應商，一直走在技術的最領先的位置，技術方面能力無人可超越，愛普生晶振所生產出來的產品可謂達到鬼斧神工，以高標準高要求嚴格化要求自身，產品覆蓋石英材料、基座及精微化、高精度、高品質頻率產品。

貼片溫補晶振	Model	Frequency	LxWxH	Output Wave	Supply Voltage	F.Tol@25°C	Ope Temperature
X1G006011009414	TG-5511CA	12.800000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006011009514	TG-5511CA	20.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006011009614	TG-5511CA	38.880000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006011009714	TG-5511CA	50.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006011009814	TG-5511CA	10.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006011020314	TG-5511CA	50.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G006001004114	TG-5510CA	10.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C
X1G006001004214	TG-5510CA	19.200000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C
X1G006001004314	TG-5510CA	20.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C
X1G006001004414	TG-5510CA	24.576000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C
X1G006001004514	TG-5510CA	25.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C
X1G006001004614	TG-5510CA	38.880000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C
X1G006001004714	TG-5510CA	40.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C
X1G006001004814	TG-5510CA	50.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C
X1G006001007614	TG-5510CA	30.720000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006001007714	TG-5510CA	24.576000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006001007814	TG-5510CA	49.152000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006001007914	TG-5510CA	24.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G006001008014	TG-5510CA	48.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G006001008114	TG-5510CA	19.200000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006001008214	TG-5510CA	38.400000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006001008314	TG-5510CA	27.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G006001009014	TG-5510CA	25.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006001009114	TG-5510CA	19.440000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006001009214	TG-5510CA	25.600000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006001009314	TG-5510CA	40.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006001009414	TG-5510CA	12.800000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006001009514	TG-5510CA	20.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006001009614	TG-5510CA	38.880000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006001009714	TG-5510CA	50.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G006001009814	TG-5510CA	10.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C

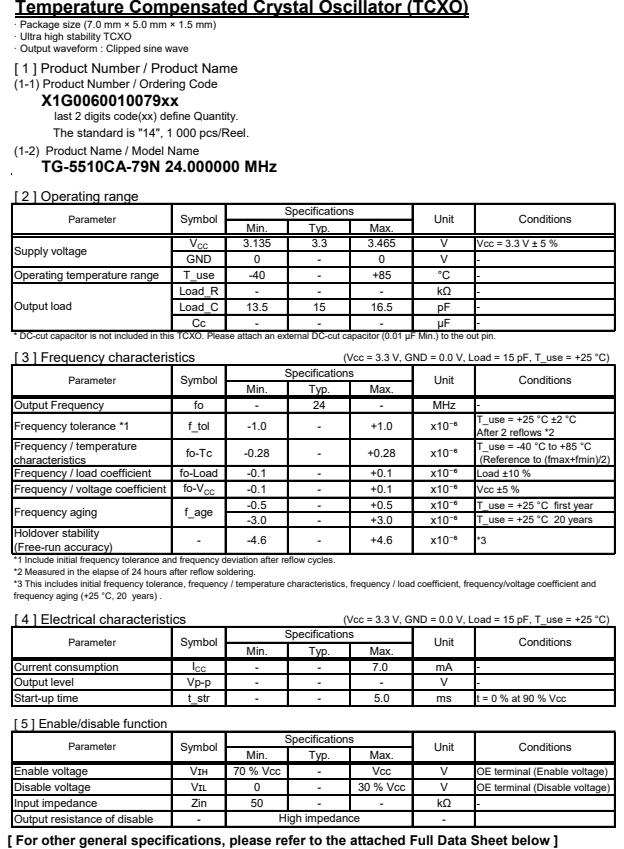

愛普生晶振利用自身的優勢開發出了新穎的TG-5510CA晶振，編碼X1G006001007914，頻率24.000000兆赫，輸出剪波正弦波，電源電壓3.13 ~ 3.46 V，電源電壓(一般)3.300 V，尺寸(LxWxH)7.0 x 5.0 x 1.5 mm，操作溫度-40至+85°C，頻率公差+/- 1.0 ppm，TG-5510CA是一種高穩定性TCXO溫補晶振可與任何一種CMOS或裁剪正弦輸出，5G基站和邊緣計算可調至+85℃，需要戶外安裝，小型化和無風扇操作，與其他tcxo相比，它提供了各種改進，如由于低溫的坡度和相位噪聲，符合GR-1244-CORE Stratum3和G.8262.1, G.8273.2 (A類，B類)，非常適合用于5G無線模塊，智能家居，投影儀等領域。
